You’ll need to know how to connect new car audio if you don’t want to use the stock wiring harness.
Wiring harnesses simplify the procedure by including all essential connectors and wiring for your new stereo. You can still install your new radio yourself, even if you don’t have a wire harness.
To get started, simply make sure you have the appropriate connectors and equipment. Remember that the procedure may change significantly based on the brand and model of your car. However, regardless of the type of vehicle, the stages are often comparable.
Table of Contents
- Is It Recommended To Wire A Head Unit Without A Harness
- What Are The Tools Needed
- How To Wire A Car Stereo Without A Wiring Harness
- How To Troubleshoot
- How To Hardwire A Car Stereo
- Watch This!
- Frequently Asked Questions
Is It Recommended To Wire A Head Unit Without A Harness
The decision to connect a car stereo without wiring a harness may be made for a few different reasons. Perhaps you’re putting a new radio in an older car that didn’t come with one, or you’re updating your car’s sound system and want to add amplifiers or other accessories.
No matter the cause, it’s not as hard as it might appear.
What Are The Tools Needed
You have to equip yourself with the following tools if you’re planning to learn how to wire a car stereo without a harness:
- Wire cutters
- Electrical tape
- Flathead screwdriver (optional)
- Knife (optional)
- Wrench (optional)
- Pliers (optional)
How To Wire A Car Stereo Without A Wiring Harness
1. Unplug The Battery
It’s crucial to unplug the battery before working on any electrical system. By doing this, you will avoid unintentionally shorting out any wires and setting off a spark.

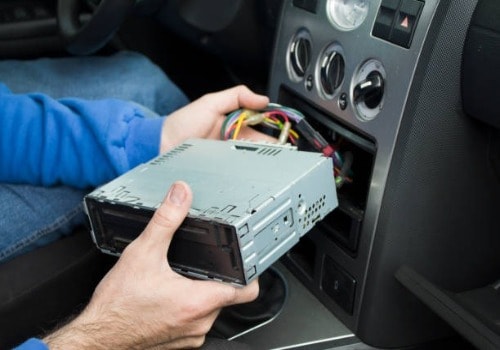

2. Remove The Old Stereo
You should start by removing any trim panels or other dashboard components that can obstruct the removal procedure. You may use a screwdriver to remove the Phillips head screws or clips that keep these components in place in the majority of automobiles.
If your stereo has any electrical connections hooked in, then make sure to carefully observe how they are linked so that you can properly reconnect them later. You will be able to see the four bolts holding the stereo in place once the trim pieces and any other impediments have been removed.
You will often require a metric wrench or socket to remove these bolts because they are typically metric bolts. The stereo should be easily removable from the dash once the bolts have been taken out.
3. Identify The Wire Connections
After removing the old stereo, you can start figuring out which cables need to be attached to the new stereo. The matching of the wire colors is the most crucial step in installing a new automobile radio. You should be aware of the functions of each wire and its intended locations.
You may get a broad understanding of what aftermarket car stereos wires signify and do by reading the following instructions:
- Red Wire – Right Rear Speaker Positive (+)
- Green Wire – Left Rear Speaker Positive (+)
- White Wire – Right Front Speaker Positive (+)
- Purple Wire – Left Front Speaker Positive (+)
- Gray Wire – Negative (-) Ground
- Yellow Wire – Illumination/Illuminated Accessory (I/IIAC or I2ACC or 11 ACC)) Control, Battery Constant Power Wire
- Blue Wire – Illumination Ground (Illuminated Accessory Control, Battery Constant Power)
- Black Wire – Chassis Ground, Negative (-) Audio Ground
- Violet Wire – Right Front Speaker Positive (+)
- Orange Wire – Power Antenna (Remote Amp Turn-On or POWER ANT1 Connector)
Tan or brown wire should be used for the ground connections for the subwoofer, rear speakers, and the left front speaker. Three connections are made by this wire: Subwoofer Ground, Left Rear Speaker Negative (-), and Right Rear Speaker Negative (-).
Left front speaker positive (+), backup lights, brake lights, and running lights are connected to the pink wire. The left front speaker positive (+), the backup lights, and the brake lights are all provided by this wire.
4. Connect The Wires To Your New Radio
You may start attaching these cables to the correct wires on your new radio once you’ve determined which wire colors go with your car. It is crucial to connect these cables properly because doing so might harm your brand-new stereo.
If you’re not sure which cables to connect, go to the installation manual that came with your new stereo or a professional car audio technician. If not, you might be able to locate instructions online or in your car’s user handbook.
5. Connect The Power Wire To Your Car’s Electrical System
Your new stereo’s power wires should be connected to the matching wiring in your car’s electrical system. Make sure that the connections are made safely and securely; otherwise, you run the risk of destroying your new stereo or generating a short circuit. Make sure to double-check each of your connections to ensure that they are strong and won’t come undone over time.
Repeat this procedure to attach any other wires, such as car speaker wires, ground wires, and so on.
6. Install Your New Car Radio
Installing your new stereo is now possible after all connections have been established. The stereo should first be carefully pushed into the dash until it snaps firmly into place. After that, secure the trim pieces and any other obstructions you removed previously.
7. Test Your New Car Stereo
It is crucial to test your new radio to ensure it is operating correctly before putting everything back together. The ignition should be turned on first, followed by the audio.
You should be able to manage the volume and other features and see the display screen turn on if everything is operating as it should.
Check your wiring and connections again to make sure everything is connected properly if you do run into any issues. Then attempt testing the stereo once more.
Enjoy your brand-new automobile audio system after putting everything back together in reverse order after you are certain your new radio is operating correctly.
How To Troubleshoot
Following the installation of your vehicle audio without a wiring harness, try the following troubleshooting advice if you’re still having problems:
- Ensure that the connections between each speaker and speaker wires are secure. For assistance with this, go to the radio wiring diagram for your car.
- Make sure your car is compatible with any aftermarket stereos you use. Some stereos need a unique wiring harness adapter to be installed.
- Make sure everything is connected securely by checking it twice. Unstable connectivity can lead to issues.
How To Hardwire A Car Stereo
Gather the necessary equipment and supplies first. Wire cutters, a Phillips head screwdriver, and a wiring harness adapter are necessary. The hardwiring of your car stereo may start after you have everything you require.
The trim piece from your car’s dash must then be removed. You can get to the cables behind it by doing this. Using your wire cutters, cut the stock car radio wiring harness after removing the trim panel.
The cables from your new stereo must now be connected to those that are visible behind the trim panel. You must coordinate the wire colors to do this.
After completing all of the connections, you may reinstall the trim panel and tuck the wires away.
The ground wire must then be connected to a metal part of your vehicle. By completing the circuit, your new stereo will function. You may test your new stereo to ensure correct operation after connecting the ground wire.
You can hardwire your car stereo with success if you stick to these instructions. You will have a tidy, expert-looking installation as a result, and it will last for many years.
Pro Auto Thought: Continue with your DIY project by doing sub-woofer wiring to test your new car stereo unit! Proceed to read our post and learn more — Bass Knob Wiring Diagram: A Nifty Quick Guide For Beginners.
Frequently Asked Questions
Do you need a wiring harness for an aftermarket radio?
Behind the stereo, there needs to be a plastic wiring harness. These connectors connect automobile stereos to the vehicle’s electrical and speaker systems.
Can you connect the car stereo directly to the battery?
Stereo cables can be used with a battery in automobiles. It must be possible for the battery to operate at a 12-volt voltage. It works best when used to charge an electric battery.
What color do wires go together in a car stereo?
For instance, the black speaker wire is the + on the speaker’s rear, whereas the black wire is the (+-) on the front speaker. The rear speaker wires are indicated purple, whereas the white wires immediately link to the left side speaker.
You have reached the end of this article, and we hope we have helped you learn how to wire a car stereo without a harness.
Although it may appear complicated, wiring a car stereo without a wiring harness is relatively easy. You can do it yourself if you have a little patience and work at it.
Just be sure to unplug your batteries, review the stereo wiring schematic for your car, and test the speakers before reassembling everything. Best of luck!
