How To Remove Pioneer Radio: A Beginner’s Guide To Detaching

Last Updated on: August 30, 2022

The Pioneer radio is undeniably among the best available car stereos. Your Pioneer stereo will often malfunction or become worn out over time.

Therefore…

It is crucial to correctly remove your Pioneer radio before shopping for a replacement.

Although many people believe it to be complex, it isn’t. All you require are some basic tools and a little patience. So without further ado, let’s look at how to take a Pioneer radio apart.

What Are The Tools Needed

Before you begin the procedure, you will require the following:

  • Flathead Screwdriver
  • Socket Wrench
  • Radio Keys

How To Remove A Pioneer Car Stereo

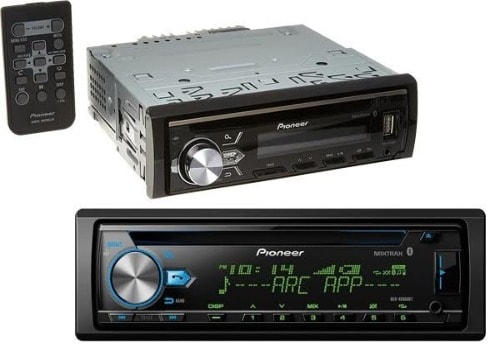

Faceplate of Pioneer car stereo

1. Detach The Pioneer Stereo Covering

a. Disconnect Your Car Battery

Your goal in disconnecting the battery is to prevent a short or shock.

Open the hood first, then remove the nut from the negative terminal. After that, carefully remove the wire and tuck it under one side of your hood.

The positive terminal should then be unfastened and stored on the hood’s opposite side.

  • Always consult your car owner’s manual before attempting to remove a Pioneer car radio.
  • There must be no metal contact between the positive terminal and any component of your car.
  • The majority of automotive batteries have a red clip on the positive terminal and a black clip on the negative.
  • Positive and negative wires must not come into contact with one another.

b. Remove All The Screws And Bolts Around The Trim

The plastic trim that surrounds your stereo serves as its border. This trim is tacked on to some cars.

Others, though, use screws or bolts to keep it firmly in place. So, examine whether anything is keeping this border in place. Then, take out the nuts and screws holding the trim in place.

  • As they are typically found close to the bottom of the trim, bolts and screws may be hidden from view.
  • To subsequently rebuild the trim, keep in mind where the bolts or screws are located.

c. Pry The Pioneer Stereo Trim Off

The removal process is the same whether the trim is fastened to the dashboard with screws or bolts.

Work around the trim by carefully slipping the screwdriver beneath it. Pull off the trim once it is a little looser.

  • There’s a good probability you overlooked a bolt or screw if your trim won’t remove.
  • Be extremely cautious when removing the trim to avoid fracturing or cracking it, since replacement or repair work may be costly.

d. Remove Your Dashboard Covering

It could be more difficult to remove the stereo from some modern vehicles. You might need to remove the entire dashboard panel rather than just the trim by prying.

Don’t worry, as quick removal is possible.

Insert a pry bar into the dashboard panel’s edge and carefully work your way around it until it begins to budge, much as when removing trim. Then, remove the panel.

  • The panel may be able to expand to cover the cup holders on some cars, such as SUVs; however, in this situation, removing the panel is still necessary.
  • To remove the panel, avoid using a screwdriver or a metal tool. The dashboard panel may shatter; as a result, costing you more money to replace.
  • You may get a plastic pry bar from your neighborhood auto parts store.

2. Remove The Head Unit

a. Look For The Slots On The Sides Of Your Pioneer Car Stereo

The stereo has two slots, one on each side. You may store the extraction keys there.

  • Certain SUVs and pickup trucks have two holes on each side rather than a narrow slot. You must use 2-pronged tools in this situation.

b. Insert The Keys To The Slot

It’s time to place the extraction keys in the two slots that may be found on either side of your stereo. Thin equipment called radio keys is often provided with your car.

You may get them at your local car parts store if you misplace them.

The extraction keys must be inserted into the slots up until you hear a click. When the extraction keys cease moving, but there’s no clicking sound, they are properly placed.

Pulling the stereo out while keeping the radio keys in place.

  • You may use any thin object or flat piece of metal as long as it fits into the slots if radio keys are not available. Thin files, knives, or hangers are suggested.
  • Radio keys and DIN tools are both terms used in some car parts retailers.

c. Detach The Pioneer Head Unit From The Socket

To remove a Pioneer car stereo from the radio socket, carefully slide it out. Take your time to prevent dropping it.

d. Unplug The Pioneer Radio

On the rear of the car audio, there are often at least two plugs.

Your Pioneer stereo will be completely free once these cables have been properly removed.

Pro Auto Thought: Sometimes you don’t need a specific car stereo brand to do DIY projects. All you need is a handy dandy how-to guide to get you started — How To Turn On Radio Without Starting Car: Tips & Tricks.


Watch This!


Frequently Asked Questions

Is it possible to remove a touch screen Pioneer radio without keys?

Yes. All you need to do is unplug, remove the face plate, remove instruments, unscrew, remove the AC vent, pop the window switch, remove the switch lock and the bolts, remove the panel and stereo, and unscrew.

Is it recommended to use a butter knife to remove a Pioneer car stereo?

Yes, you can remove a Pioneer vehicle audio without a flat screwdriver by using a butter knife instead.

Therefore, it is advisable to use a flat butter knife rather than other improvised tools if you do not have a flat screwdriver on hand.

Is the Pioneer car radio good?

There is no doubting the superior quality of Pioneer radios. Most of their offerings are high-quality and have appealing sounds.

Is removing the Pioneer head unit complicated?

It is not very complex in general. Stereo systems can vary in complexity, though. As a result, before beginning any work, it is important to review the owner’s handbook.

If you are unsure if you can perform it correctly, it is preferable to get assistance from an expert. The price of hiring a professional is affordable. You will also need to spend more to repair your car audio if you damage it.

How much does it cost for a professional to remove the Pioneer car radio?

If you do this process yourself, it won’t cost you anything. Only $20 to $30 is required to purchase the required tools.

Professional expenses often range from $50 to $100.


Conclusion

That’s it! We have covered all the information required to remove a Pioneer radio.

In general, removing the Pioneer head unit is a simple process that any car owner may complete without difficulty.

I look forward to seeing you vibing to your favorite tunes on your high-quality stereo. Let me know your experience, in the comments!
