When it comes to upgrading your vehicle’s electrical system, choosing the right solid state relay control modules can make a significant difference. These components not only enhance functionality but also improve reliability. With various options available, from the sturdy MSD Solid State Relays to the adaptable AITRIP modules, it’s important to know which ones stand out. Let’s explore the top choices that could transform your automotive experience.
MSD 75643-HC Solid State Relay, 35AX4, Black
If you’re looking for a reliable and high-performing relay for your vehicle’s electrical system, the MSD 75643-HC Solid State Relay is an excellent choice. This high-current relay boasts a rating of 35A per channel, handling a total of 140A continuously. Designed for 7-20 Volts DC, it features single wire activation, making installation straightforward. You can easily mount it on a chassis or panel, and its steel contacts guarantee durability. With a compact size and lightweight design, it fits seamlessly into your setup. Plus, it’s backed by a standard warranty, assuring you’re covered with your purchase.
Best For: Automotive enthusiasts and professionals looking for a high-current relay to manage their vehicle’s electrical demands.
Pros:
- High current capacity: Supports up to 35A per channel, with a total of 140A continuously, making it suitable for demanding applications.
- Durable construction: Features steel contacts and a robust design that ensures longevity and reliability in various environments.
- Easy installation: Single wire activation simplifies the wiring process, and it can be mounted on chassis or panel for convenience.
Cons:
- Limited voltage range: Only operates within 7-20 Volts DC, which may not be suitable for all applications.
- Size constraints: Although compact, the dimensions may not fit in all tight spaces or specific setups.
- Higher price point: Solid state relays can be more expensive compared to traditional relays, which may deter budget-conscious buyers.
AITRIP 8 Channel 5V Solid State Relay Module Board
The AITRIP 8 Channel 5V Solid State Relay Module Board is an excellent choice for hobbyists and engineers looking to integrate a reliable control system into their vehicle projects. This fully assembled module supports a high-level trigger and works seamlessly with various microcontrollers like Arduino and PIC. With a load voltage range of 75 to 264VAC and a current capacity of up to 2 amps, it’s perfect for controlling multiple devices. Each relay has an LED indicator, making it easy to monitor. Its compact size guarantees it fits well in tight spaces, enhancing your automotive experience effectively.
Best For: The AITRIP 8 Channel 5V Solid State Relay Module Board is best for hobbyists and engineers looking to control multiple devices in their vehicle projects.
Pros:
- Highly compatible with various microcontrollers, including Arduino and PIC.
- Compact size makes it suitable for installation in tight spaces.
- LED indicators for each relay facilitate easy monitoring of the system’s status.
Cons:
- Requires a high-level trigger, which may not be suitable for all applications.
- Limited to controlling devices with a maximum load current of 2 amps.
- Unknown state between 0.5V and 2.5V may lead to unpredictable behavior if not managed correctly.
MSD 75643 Stand Alone Solid State Relay – Black
For those looking to enhance their vehicle’s electrical system, the MSD 75643 Stand Alone Solid State Relay is an ideal choice. This sleek black relay features four channels, each capable of handling up to 20 amps continuously, or 50 amps for short bursts. You can easily activate it with either power or ground, adding versatility to your setup. Installation is a breeze with minimal wiring and multiple mounting options available, ensuring a clean look in your vehicle. Plus, channels can run in parallel for devices needing higher ratings, making it perfect for various automotive applications.
Best For: Automotive enthusiasts looking for a reliable and versatile relay to enhance their vehicle’s electrical system.
Pros:
- Versatile Activation: Can be activated with either power or ground, providing flexibility in installation.
- High Capacity: Each channel supports up to 20 amps continuously and 50 amps for short bursts, accommodating various devices.
- Easy Installation: Features minimal wiring and multiple mounting options for a clean and tidy setup.
Cons:
- Limited to 4 Channels: May not be sufficient for users needing more channels for additional devices.
- Requires Knowledge: Installation may require some electrical knowledge, which could be a barrier for beginners.
- Short Burst Limitations: The 50 amp capability is only for 8 seconds, which may not be suitable for all applications.
1-Channel Solid State Relay Module
Engineers and hobbyists looking for reliable control in automotive applications will find the 1-Channel Solid State Relay Module an excellent choice. This compact module, measuring just 50x30x10mm and weighing only 0.317 ounces, offers high-low level triggering with 3A optocoupler isolation. It’s designed to handle AC/DC loads up to 60V for short bursts and operates with a power supply range of 5-32V. With built-in current limiting and stable performance, it’s perfect for power or signal control. Plus, the clear indicators give you real-time feedback on relay status, making it a user-friendly option for any project.
Best For: Engineers and hobbyists seeking reliable control solutions in automotive applications or projects requiring power or signal management.
Pros:
- Compact size and lightweight design makes it easy to integrate into various projects.
- High-low level triggering and 3A optocoupler isolation ensure stable and reliable performance.
- Clear indicators provide real-time feedback on relay status for user-friendly operation.
Cons:
- Limited maximum load of 3A may not be suitable for high-power applications.
- Inductive load handling requires additional components like freewheeling diodes, complicating setup.
- Customer reviews indicate a mixed satisfaction level with an average rating of 3.7 out of 5 stars.
2Pcs 4 Channel Solid State Relay Module for Arduino
If you’re diving into DIY projects involving vehicle control systems, the 2Pcs 4 Channel Solid State Relay Module for Arduino stands out as an ideal choice. This module operates at 5V and supports loads up to 240VAC and 2A, making it perfect for various AC and DC applications. With a lifespan of 10 million cycles, it’s built for durability. You’ll appreciate the low-level trigger method and status indicator lights for easy monitoring. Plus, the reverse power connection feature adds safety by preventing wiring damage. Weighing just 2.75 ounces, it’s compact and user-friendly, enhancing your automotive experience effortlessly.
Best For: DIY enthusiasts and hobbyists looking to implement vehicle control systems with reliable AC/DC switching capabilities.
Pros:
- Durable: Designed for up to 10 million cycles, ensuring long-lasting performance.
- Safety Features: Reverse power connection prevents damage from incorrect wiring.
- User-Friendly: Low-level trigger method and status indicator lights simplify operation and monitoring.
Cons:
- Limited Load Capacity: Maximum load is 2A, which may not be sufficient for high-power applications.
- Size: While compact, the module may still be larger than some alternatives for very tight spaces.
- Frequency Limitations: Maximum switching frequency of 5KHz may not suit all advanced applications.
3pcs Solid State Relay SSR-40DA Module for Temperature Controller
The SSR-40DA Solid State Relay Module is an excellent choice for anyone looking to enhance temperature control systems in demanding environments. With a wide input range of 3-32V DC and an output capacity of 24-380V AC, this module handles up to 40A, ensuring robust performance. Its compact size of 62mm x 45mm x 24mm fits easily into tight spaces. Plus, it operates silently and sparks-free, making it perfect for sensitive applications. Designed for PID thermostat controllers, it’s resistant to corrosion, moisture, and dust, making it ideal for various automatic control systems in harsh conditions.
Best For: The SSR-40DA Solid State Relay Module is best for professionals and hobbyists seeking reliable temperature control solutions in industrial or harsh environments.
Pros:
- High current rating of 40A allows for robust performance across various applications.
- Silent operation with no electric sparks, making it ideal for sensitive electronics.
- Durable design that is resistant to corrosion, moisture, and dust, ensuring longevity in tough conditions.
Cons:
- Limited input voltage range of 3-32V DC may not suit all applications.
- Requires proper heat dissipation to avoid overheating under maximum load.
- Installation may require technical knowledge, which can be a barrier for novice users.
2-Channel Solid State Relay Module High-Low Level Trigger
For those seeking reliable control solutions in automotive applications, the 2-Channel Solid State Relay Module with High-Low Level Trigger stands out due to its optocoupler isolation, ensuring safe operation even in demanding environments. With a trigger current of just 0.1mA and a control capacity of 3A, this module handles AC/DC loads up to 60V effectively. Its industrial-grade double-sided PCB and small dimensions make it durable and easy to integrate. You’ll appreciate its fast action time and long working life, replacing mechanical relays with stable performance for various power and signal control cases, enhancing your automotive experience.
Best For: Those seeking reliable and efficient control solutions for automotive applications and other power or signal control needs.
Pros:
- Optocoupler isolation ensures safe operation in demanding environments.
- Fast action time and long working life provide stable performance, enhancing reliability.
- Compact design with industrial-grade components allows for easy integration in various applications.
Cons:
- Maximum load is limited to 3A, which may not suffice for heavier applications.
- Requires a DC power supply of 5-32V, which may not be compatible with all systems.
- Trigger current of 0.1mA may necessitate specific conditions for activation, potentially complicating some installations.

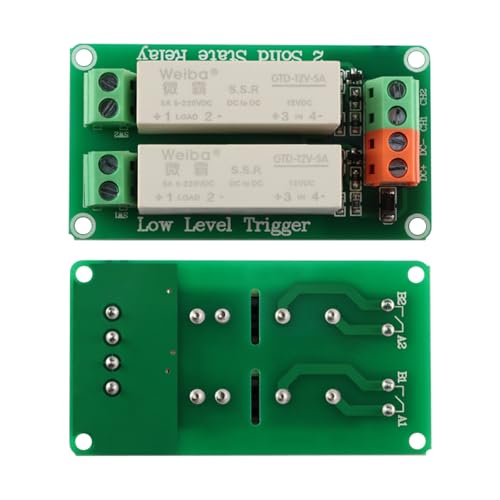

12V 2 Channel Solid State Relay Module for Raspberry Pi
Designed specifically for Raspberry Pi enthusiasts, the 12V 2 Channel Solid State Relay Module stands out with its low-level trigger functionality, making it an ideal choice for those looking to automate control systems effortlessly. It supports a load voltage range from 5V to 220V DC and handles a maximum load current of 5A, perfect for various high-power devices. With clear pin descriptions and simple connection steps, setup is a breeze. The module also features diode protection to prevent damage from incorrect connections and is designed to resist high temperatures, ensuring long-lasting performance in your DIY projects.
Best For: Raspberry Pi enthusiasts looking to automate control systems with a reliable and easy-to-use relay module.
Pros:
- Versatile Load Compatibility: Supports a wide load voltage range from 5V to 220V DC, accommodating various high-power devices.
- User-Friendly Setup: Clear pin descriptions and simple connection steps make installation quick and easy.
- Durable Design: Features diode protection and is built to withstand high temperatures, ensuring long-lasting performance.
Cons:
- Current Limitation: Maximum load current is capped at 5A, which may not be sufficient for very high-power applications.
- Low-Level Trigger Only: Designed specifically for low-level trigger functionality, limiting its use in certain control systems.
- Potential Complexity in Advanced Projects: May require additional components or knowledge for integration into more complex automated systems.
CG Solid State Relay SSR-40DA DC to AC Input
CG Solid State Relay SSR-40DA stands out as an excellent choice for those seeking reliable control in automotive applications. With a DC input range of 3-32V and an output capacity of 24-480VAC, this relay can handle up to 40A. Its high switching speed guarantees efficiency, while its anti-corrosion and moisture-proof design assures durability. You’ll appreciate the noise-free operation and anti-vibration properties, making it ideal for various machinery control systems. Plus, it comes with thermal grease for better heat dissipation, enhancing temperature management. Overall, it’s a robust solution for your automotive needs, providing long-lasting performance in diverse conditions.
Best For: Those seeking a reliable and efficient solid state relay for automotive and machinery control applications.
Pros:
- High switching speed ensures efficient operation.
- Moisture-proof and anti-corrosion properties enhance durability.
- Comes with thermal grease for improved heat dissipation.
Cons:
- Limited to a specific input voltage range of 3-32VDC.
- Output capacity may not be sufficient for very high power applications beyond 40A.
- Requires proper installation to ensure optimal performance and safety.
SSR-10AA Solid State Module Relay for Industrial Automation
The SSR-10AA Solid State Module Relay stands out as an ideal choice for industrial automation due to its robust performance and versatility. With an input voltage range of 80-280V AC and an output voltage up to 480V AC, it handles up to 10A effortlessly. Its small input current, fast response, and noise-free operation make it perfect for various applications, including lighting control and medical equipment. Weighing only 90g and measuring 48mm x 33mm x 61mm, it fits easily into tight spaces. Just remember to manage heat effectively, especially when currents exceed 3A, ensuring longevity and reliability in your automation projects.
Best For: The SSR-10AA Solid State Module Relay is best for industrial automation professionals needing reliable and efficient control solutions for various electrical applications.
Pros:
- Fast response time ensures quick switching, enhancing system efficiency.
- Noise-free operation contributes to a quieter working environment.
- Compact size and lightweight design allow for easy installation in limited spaces.
Cons:
- Heat management is required for currents over 3A, which may necessitate additional components.
- Limited to a maximum rated current of 10A, which may not be suitable for high-power applications.
- Screw terminal connections may require additional tools for installation, potentially complicating setup.
Factors to Consider When Choosing Solid State Relay Control Modules for Vehicles
When choosing solid state relay control modules for your vehicle, you’ll want to take into account several key factors. Current rating requirements, voltage compatibility, and activation methods can greatly impact performance. Additionally, think about mounting options and heat management to guarantee a reliable installation.
Current Rating Requirements
Selecting the right current rating for solid state relays (SSRs) in vehicle applications is essential for guaranteeing ideal performance and safety. You should choose a relay that matches or exceeds the maximum load current it will control. SSRs typically range from a few amps to over 40 amps, with some models capable of handling up to 35 amps continuously, perfect for high-power devices. Don’t forget to account for potential inrush currents, which can exceed normal operating currents; a higher current rating may be necessary to prevent damage. If your application involves multiple devices, consider SSRs that can be paralleled to meet the combined current needs. Finally, always verify the current rating aligns with your vehicle’s electrical system to avoid overheating.
Voltage Compatibility
Ensuring that your solid state relay (SSR) matches the voltage compatibility of your vehicle’s electrical system is essential for ideal performance and reliability. Most automotive systems operate within a range of 7 to 20 volts DC, so your relay’s activation voltage must align with this standard. Additionally, check the load voltage compatibility; some relays handle AC voltages between 75 to 264VAC, while others are tailored for specific DC ranges. It’s vital to verify the relay’s continuous current rating to support the maximum current draw of controlled devices, with options available up to 35A per channel. Finally, make sure the overall wattage rating accommodates the combined load of all connected devices, with some relays capable of handling up to 2800 watts.
Activation Methods
While considering solid state relay control modules for your vehicle, it’s important to evaluate the activation methods available. Solid state relays can be activated using either a power or ground signal, giving you flexibility in how you control them. You’ll typically find high-level and low-level triggers; the former requires a voltage above a certain threshold, while the latter operates on a lower voltage signal. Many SSRs feature single wire activation, simplifying wiring and integration. Activation voltage can vary, with some needing a minimum of 7 volts and others up to 20 volts. Additionally, verify compatibility with microcontrollers like Arduino and Raspberry Pi, as this allows for efficient control and customization of your vehicle’s systems.
Mounting Options
When you’re choosing solid state relay control modules for your vehicle, the mounting options considerably impact your installation process and overall design. You’ll want to take into account the type of mounting—like chassis or panel mount—as it affects installation ease and space requirements. Look for modules that offer multiple mounting options to provide flexibility for different vehicle layouts. Confirm the dimensions of the relay module fit the available installation space to avoid any fitment issues. Accessibility for maintenance is essential too, so choose a location that allows easy troubleshooting. Finally, opt for modules with clear installation guidelines to simplify the setup process, guaranteeing reliable operation and a hassle-free experience.
Heat Management Considerations
To maintain ideal performance in your solid state relay control modules, effective heat management is essential. While SSRs generate less heat than traditional mechanical relays, their heat dissipation still requires attention. When choosing an SSR, consider the maximum current rating; higher ratings, like 35A or more, may need additional cooling measures such as heat sinks or fans. It’s also vital to account for ambient temperature and the SSR’s upper temperature rating during installation, as high temperatures can shorten lifespan and reliability. Proper mounting techniques, like chassis mounting with good airflow, enhance heat dissipation. Finally, using thermal grease or pads between the SSR and the mounting surface improves heat transfer, ensuring consistent operational efficiency.
Load Type Handling
Choosing the right solid state relay (SSR) for your vehicle hinges on understanding the load type you’ll be controlling. SSRs can manage both AC and DC loads, so you need to check the specific voltage and current ratings. Verify the SSR’s current rating matches your load—some modules handle continuous currents up to 35A, perfect for high-power uses. Also, confirm the voltage compatibility, like 240VAC for standard AC loads or even up to 480VAC for industrial needs. If you’re dealing with inductive loads, such as motors, make sure to use protective measures like diodes to prevent back EMF from damaging the relay. Finally, consider switching frequency; some SSRs manage up to 5KHz for rapid on-off control.
Response Time Efficiency
Understanding load type handling is important, but response time efficiency is equally vital in selecting solid state relay (SSR) control modules for your vehicle. SSRs can switch faster than mechanical relays, often achieving speeds under 1 millisecond. This quick response is essential for applications needing rapid control. With faster rise and fall times, SSRs allow for swift changes between on and off states. Plus, they have no moving parts, which means consistent performance over time without mechanical wear. Their high-frequency switching capabilities can reach up to 5KHz, perfect for frequent on/off cycles. Also, SSRs maintain their efficiency even in varying temperature conditions, ensuring reliable performance in your automotive environment.
