Bad Ground On Amp Symptoms Affecting Your Speakers: 8 Causes

Last Updated on: May 17, 2022

The symptoms of bad ground car audio can be very infuriating for most folks, especially if you don’t know the exact cause of the car stereo problem. You start the engine, switch on the car stereo, and everything functions correctly.

But…

When you try adjusting the volume or changing the channel, the car audio system goes silent or produces static noises thanks to improper grounding.

Several issues can suddenly arise if your car has bad ground on amp. If you want to know the signs of a bad car amplifier then continue reading.

What Is Bad Ground on Amp?

Generally, bad ground on the amp means your car’s amplifier is permanently damaged. This problem doesn’t just happen overnight; in fact, there are several bad ground on amp symptoms that can warn you before it happens.

8 Bad Ground on Amp Symptoms

The amplifier is a crucial part of your vehicle’s sound system; unfortunately, a bad grounding issue can occur at any time resulting in several complications. Therefore, you have to watch out for the blown amp symptoms and fix them immediately, or it may end up costing you a lot of cash. So if you want to know how to tell if the amp is blown, please read on.

1. Overheating

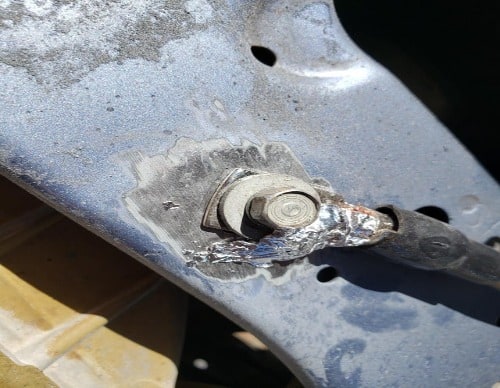

Overheated amp due to bad grounding
Overheated Amplifier Due to Bad Ground

If the power cable and/or the ground strap are short for your amplifier, or its ground linkage is faulty, then it may suffer from thermal breakdown.

After all, the amp won’t be receiving enough power to provide the needed output.

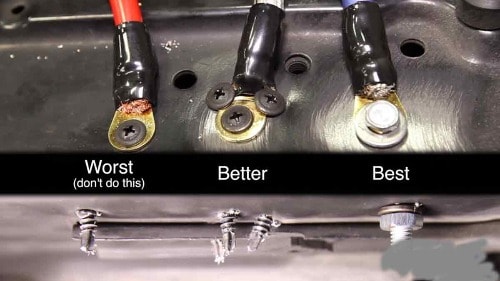

To provide the utmost grounding for your vehicle, you should ensure that the power wire is the same size as the ground wire. The ground wire should also be firmly fastened to a part of the frame/chassis that has been sanded down and not painted.

When overheating of the car is associated with overheating of the amp and the head unit, the quality of the music is affected. Some of the main reasons why the amplifier overheats include

  • Improper ventilation
  • Inadequate power supply or grounding
  • Clipping sounds produced by the car speakers
  • Improper installation
  • Alternator whine produced by the damaged alternator

2. Clipping Sound Signal

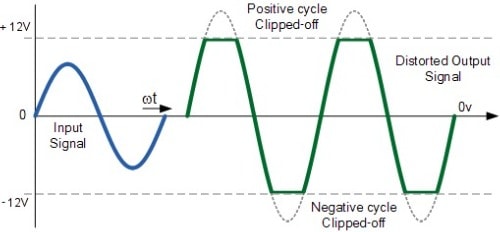

Clipping sound signal causing distorted sound output
Clipping Sound Signal

When you force the amplifier to produce more power than it can, it always ends up producing some clipping sounds in the form of dissonance. The clipping sounds are usually attributed to inadequate grounding and you can control its volume using your head unit. When the amp is pushed to generate more power to replicate the input signal to your speaker, it produces a skewed signal.

This will do more than affect the quality of your music; it may end up destroying your stereo. The clipping sound is one of the main blown amp symptoms to watch out for. The clipping sound signal can also be triggered by the following:

  • Insufficient wire gauge
  • High input sensitivity
  • Overheating of the amp may result in blowing of the fuse

3. The Amplifier Won’t Turn On

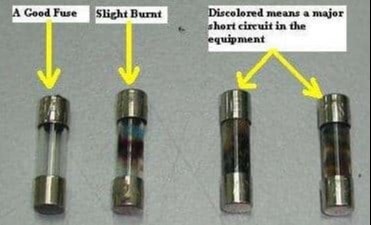

Busted amplifier fuse
Blown Amplifier Fuse

Another vital sign of poor grounding is when the amp won’t turn on or it turns on but no sound comes out from your speakers. Since the circuit is usually completed by grounding, an amp with poor grounding won’t turn on, especially if it has a blown fuse. Remember, the ground wire should be thick enough to supply your Amp’s power needs, or the Amp won’t work properly or even switch on at times.

Other than poor ground connection, here are other signs of a bad car amplifier that can prevent it from turning on:

  • Voltage drop in the power cable
  • A blown fuse
  • The amp is attached to conducting materials
  • No remote, broken remote wire or speaker wire
  • Short circuit
  • A bad starter motor

4. Restarting Every Time

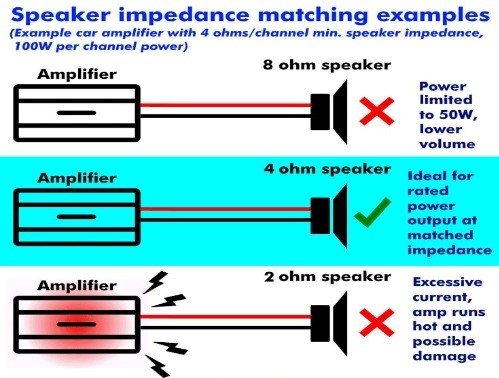

Impedance Matching Diagram

If your amplifier keeps restarting every time, then it may not be properly grounded. A loose or damaged ground connection may force your amp to continually switch on and off because of a lack of power. Therefore, you should ensure that all the connections are tight and that you don’t have a loose cable that may act as a circuit breaker. The following factors can also trigger continuous switching on and off of the amplifier:

  • Clipping
  • Overheating
  • Mismatch in impedance
  • Aad amp
  • Defective internal components of the entire car audio system
  • Electrical problem

You could also try adding a second battery for car audio. Sometimes, bad ground on amp and an overworked car battery is and can be the leading cause of poor amp performance!

5. Frequent Activation of the Protection Mode

Most vehicle amps have a “protection mode” feature designed to protect the internal parts of the amplifier when it starts malfunctioning. Unfortunately, some car amplifiers don’t come with the protection mode feature, so you have to read the manual to find out if your amp has this feature.

The manual has many paragraphs with helpful information designed to help you protect your amp. But if you don’t have time to go through the entire manual, you can skim through it looking for the following key phrases:

  • The color of the protection mode indicator light
  • Does it have a protection mode indicator?
  • Does the indicator blink when there is a problem

So if the amp’s protection mode indicator keeps switching on and off, then your car audio may have some ground connection issues.

6. Burning Smell

A burning smell is a sign of an improper amplifier ground that can put your car at risk, so you should switch off the vehicle and examine it immediately after you notice something burning.

Remember:

Heat is produced by the resistance created by a loose ground wire or when it connects with the car’s chassis. This can generate some harmful sparks or melt the ground terminal, which can result in fire.

Therefore, it’s crucial that you ensure that the ground strap is tightly secured to the car. A loose connection can become a fire hazard if not replaced or repaired on time.

7. Weak Output

Your amp cannot produce its rated voltage unless the grounding and power cables are supplying more than enough voltage to support its demands. A bad grounding cable will starve the amplifier, resulting in weak subwoofers or speakers. The subwoofers/speakers will also cut out when you increase the volume.

8. Whining Noises

There are many things that can cause car troubles that may end up infiltrating your vehicle’s sound system. Therefore, locating the exact cause of the whining noises, rattling and vibration, hisses, and other irritating disharmonies can be a challenge to pinpoint. But the leading causes of this problem are inadequate grounding and inadequate amp installation.

These two problems can be prevented by ensuring the amp’s metallic enclosure is adequately insulated and correctly grounded. You may have to install a noise suppressor or filter in some instances. Plus, the ground wire should not be over 18 inches long or linked to the negative battery cable; after all, a long cable can generate some disturbances. The antenna and patch wires can also cause some disturbances. The problem is figuring out the cause or causes of the problem.


Frequently Asked Questions

What Does an Exceptional Grounding Look Like?

The grounding cable can make or break the sound system when replacing or installing an amp. A bad ground cable can cause several issues, including dimming headlights and even fire in the worst-case scenario. Therefore, to guarantee the stability of your car’s sound system, the length of the amplifier’s ground wire should not exceed 18 inches.

The ground cable should be firmly attached to bare metal. Plus, the gauges of the power wire and ground cables should match for efficient and proper flow of current. Just make sure you don’t forget to remove the paint from the surface of the chassis when installing the ground pin.

Can I Create a Battery Ground?

Well, the answer to this question depends on the voltage of the battery. Remember, all the 12-volts components need to be grounded in the same position. Therefore, if the amp is grounded to metal in the starter motor/engine block while the head unit is grounded to the negative battery terminal, they will make a loop.

A look is created when two devices are intended to have the same reference point but are grounded separately. The ground loop is a bad ground connection that can manifest into a humming or hissing sound in the audio system. So before grounding the amp to the battery, make sure other components are grounded to it.


Conclusion

Poor grounding on your car’s amplifier can result in several problems like power supply issues between the car and the amplifier, frequent activation of the protection mode, and overheating.

With a ground loop, the Amp may start producing some hissing sounds and at times switch to “protection mode.” Luckily, detecting these signs can be easy; the main challenge is grounding the vehicle’s amplifiers correctly.
